Golden Compass HD

spacer

model: GP-620

Get a special offer on this power chair

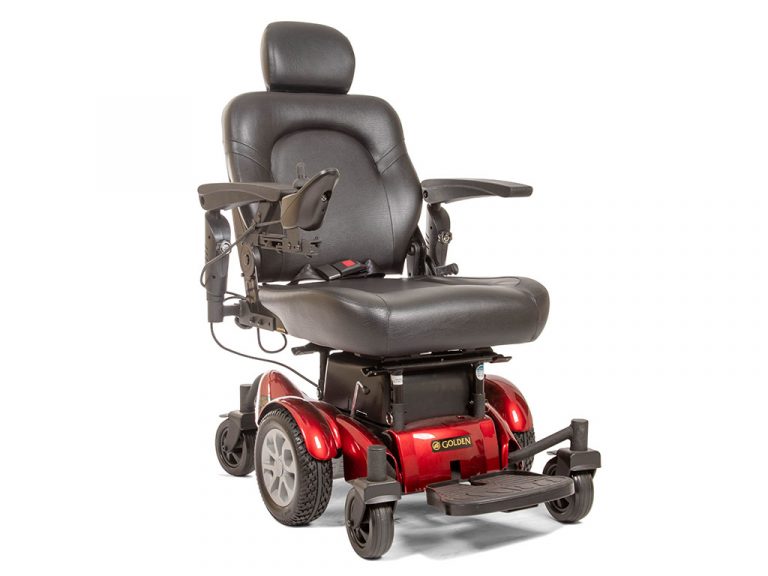

Golden Compass HD
Click to enlarge
spacer
Additional Images

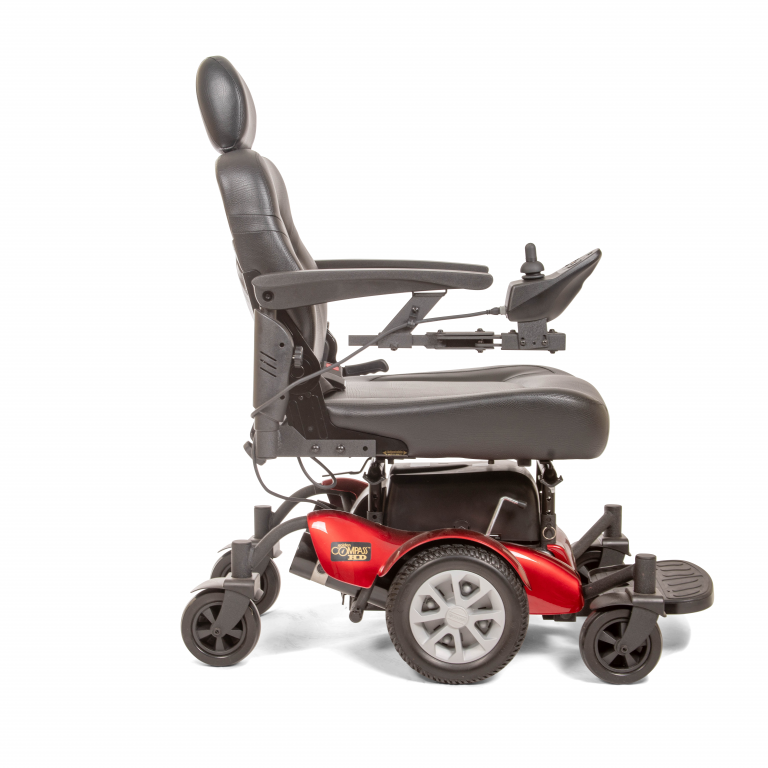

  • Side View

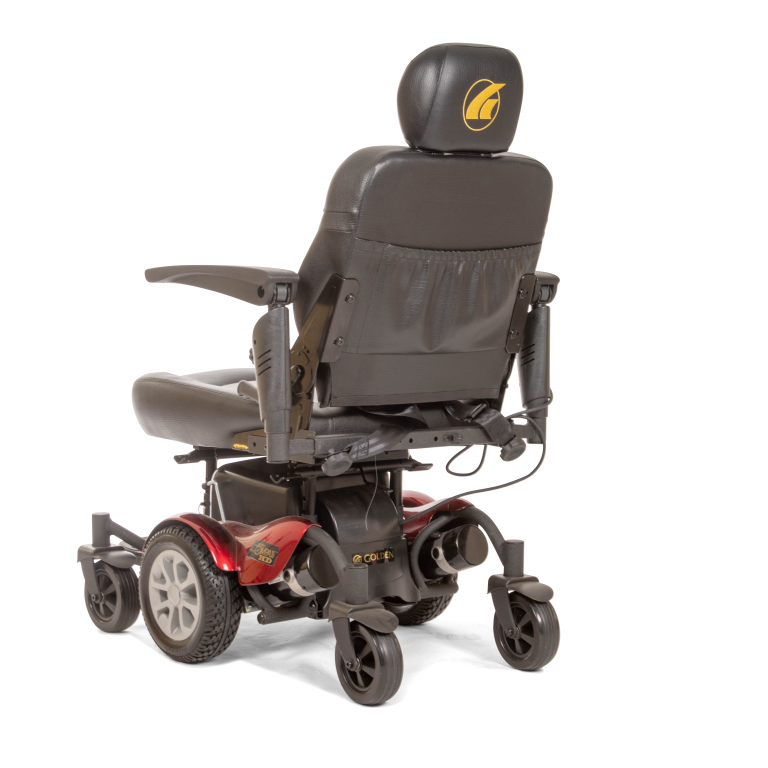

  • Rear View

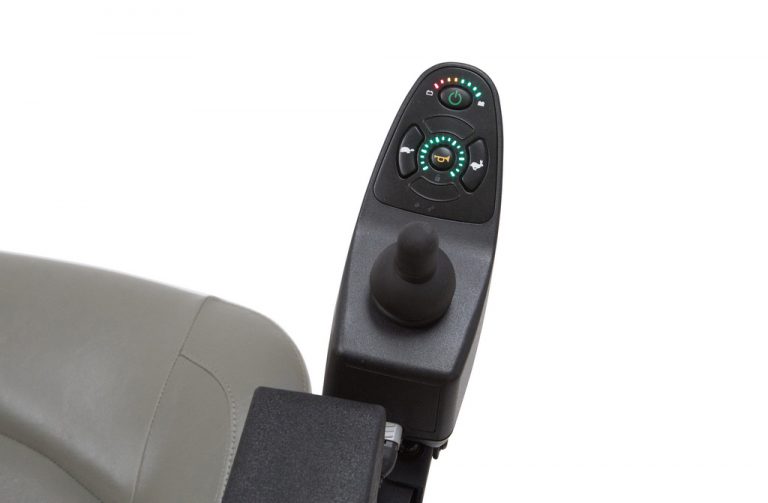

  • View of Drive Controls

Additional Resources
Call (859) 494-5235 or click to learn more about our special offers.
Your Price$5,196.00
Regular Price$6,599.00
*Non-Contiguous U.S. States & Territories - please call for shipping charges.

Warranty Info

Click Here
Product Review
(0)
(70)
No Sales Tax in most states.
The Golden Compass HD offers you a stable, center-wheel-drive platform and an articulating chassis for stability over tough terrain. A bigger, beefier version of the popular Compass Sport, the Compass HD has a 450 lb. weight capacity, yet a modest 20-inch turning radius. It comes standard with a captain’s seat and our exclusive fold-flat seat hinge design for easy transport.

The Compass HD features front and rear height-adjustable seat posts, padded flip-up armrests, an easy-to-use sliding seat bracket and a fully adjustable footplate. With this lineup of features, the Golden Compass HD can take you to places you could only imagine!
Weight Capacity450 lb
Overall Length39.8"
Overall Width25"
Range12 mi
Weight, Base90 lb
Turning Radius20"
Weight, Total209 lb
Top Speed4 mph
Weight, Seat35 lb
Minimum Seat Height20.5"
Maximum Seat Height23.5"
Weight, Batteries70 lb
Drive Wheels10" Flat Free
Caster Wheels6" Flat Free
Charger TypeOff-board, 5 Amp
Controller TypeDynamic Shark, 75 Amp Programmable
Battery Type22NF x 2
Shipping Info
Shipping Weight
Shipping Length
Shipping Width
Shipping Height
  • Color

    • $0.00
      Candy Apple Red
      Candy Apple Red
      spacer
    • $0.00
      Blue
      Blue
      spacer
  • Batteries

    • $0.00
      No Image
      22NF Batteries (set of 2)
      spacer
  • Controller Position

    • $0.00
      No Image
      Controller On The Left
      spacer
    • $0.00
      No Image
      Controller On The Right
      spacer
  • Seating

    • $0.00
      No Image
      High Back Captain's Chair, 20" W x 20" D
      spacer
    • $0.00
      No Image
      High Back Captain's Chair, 22" W x 20" D
      spacer
    • $0.00
      No Image
      High Back Captain's Chair, 24" W x 20" D
      spacer
    • $360.00
      No Image
      Custom Seat Sizes, Pan Seats, or Proflex Seating Frames
      spacer
  • Seat Color

    • $0.00
      No Image
      Two-Tone Charcoal Vinyl
      spacer
    • $0.00
      No Image
      Two-Tone Sand Vinyl
      spacer
  • Leg Rests & Supports

    • $0.00
      No Image
      Adjustable Footplate
      spacer
    • $168.00
      No Image
      Swing Away Footrests
      spacer
    • $284.00
      No Image
      Elevating Leg Rests
      spacer
  • Accessories

    • $0.00
      No Image
      Lap Belt
      spacer
    • $150.00
      Power Chair Cover, Large
      Large Power Chair Cover
      spacer
    • $63.00
      Cane Holder Tube
      Cane Holder Tube
      spacer
    • $56.00
      Crutch Holder
      Forearm Crutch Holder
      spacer
    • $15.35
      Safety Flag
      Flag
      spacer
  • Accessories Requiring a Rear Mounting Bracket

    • $25.60
      No Image
      Rear Mounting Bracket
      Required for use with a rear basket, walker holder, oxygen tank holder, or quad cane holder.
      spacer
    • $108.00
      Rear Basket
      Rear Basket
      spacer
    • $122.00
      Walker Holder
      Walker Holder
      spacer
    • $175.00
      Oxygen Tank Holder
      Oxygen Tank Holder
      spacer
    • $96.00
      Quad Cane Holder
      Quad Cane Holder
      spacer
  • Delivery

    • $0.00
      No Image
      Standard Delivery
      • Product will be left in the driveway, as long as there are no steps
      • If there is no driveway, the driver is allowed to leave the product at the curb
      • The customer is responsible for getting the product inside their home
      spacer
    • $72.00
      No Image
      Front Door Delivery
      This service will bring the product no further than the front entrance to the residence, unless:
      • There are any stairs leading to the front door
      • The distance between the roadway and the entryway is unreasonably long

      If any of these limitations are present, a driver is allowed to leave the product in front of the front porch, on the ground-level porch, under a carport, or in a garage.
      spacer
    • $449.00
      No Image
      White Glove Delivery (adds 10 days to delivery)
      We do realize that many end users of Golden Technologies′ products may be unequipped for the unpacking and movement of our products; this is why we also offer White Glove Delivery. In a White Glove service, a white Glove agent will:

      • Deliver the unit inside the customer′s home
      • Unpack the unit
      • Set it up in the room of their choice
      • Connect the power
      • Remove all packing debris

      spacer
    • $200.00
      No Image
      New OptionWhite Glove Rural/Dense Delivery Area Additional Charge (see Rural/Dense Delivery Area Chart)
      Additional Charge for White Glove Delivery to Rural or Metro areas (in addition to standard White Glove charge)
      spacer
spacer
Wheelchair Measuring Diagram - Front
Wheelchair Measuring Diagram - Side

 Seat Width: Measure the widest point of your body between the knees and hips. Add at least one inch- to this measurement for some extra breathing room. If you typically wear bulky or heavy clothing, such as during outdoor use in winter, you may wish to add two inches to this measurement to give yourself adequate room to move.



Back Height: This measurement will determine the distance from the seat base to the top of the wheelchair's seat back. Typically, you'll want to measure from the most posterior point of your body to the center point between your shoulder blades. Some users may prefer a higher back for added support, but remember that the higher the back of the chair is, the less room you'll have to rotate your upper body while seated.



Front Seat to Floor: Measure your leg from the back of your knee to the sole of your foot. Unless you are choosing a foot-propelled wheelchair, you will want to add two inches to this measurement to give yourself plenty of clearance for a footrest.



Seat Depth: Measure from the most posterior point of your body to the interior of your knee, deducting two inches from the total. You may require a greater amount of leg overhang to lift your legs during use; if so, consult your rehabilitation professional for guidance on adjusting your measurements accordingly, or speak with one of our power wheelchair specialists by dialing 1 (800) 794-9813 to get the right fit.



Hanger Angle: This measurement specifies how far your toes will extend from your body when seated, and is measured horizontally. The tighter your hanger angle, the less space you'll need to turn your wheelchair around. The flexibility of your legs and knees may also impact the hanger angle you will want to choose. Most wheelchairs have a hanger angle of about 70 degrees, and the farthest hanger angle available on any wheelchair is 60 degrees. Pediatric chairs have a hanger angle of 90 degrees to accommodate the shorter leg length of child users. A hanger angle is difficult for a wheelchair user to measure on their own, so we highly recommend calling one of our power wheelchair experts at 1 (800) 794-9813 to help you find a chair with the optimal hanger angle for your needs.



spacer
spacer
spacer
Product Reviews
This product currently has no reviews. Would you like to leave one?
