Harmar Pinnacle Premium Stair Lift

spacer

model: HARSL600

Want a coupon for product?

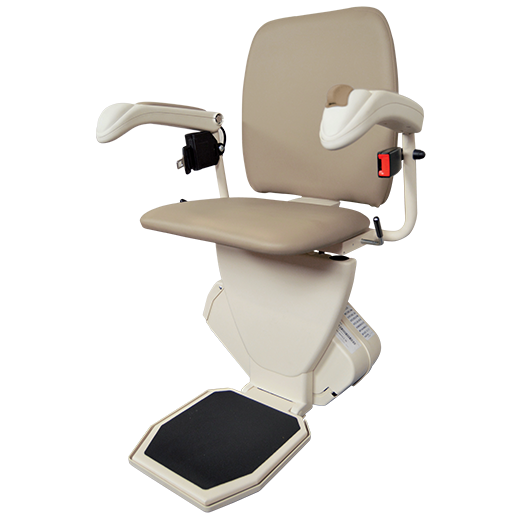

Harmar Pinnacle Premium Stair Lift
Click to enlarge
spacer
Additional Images

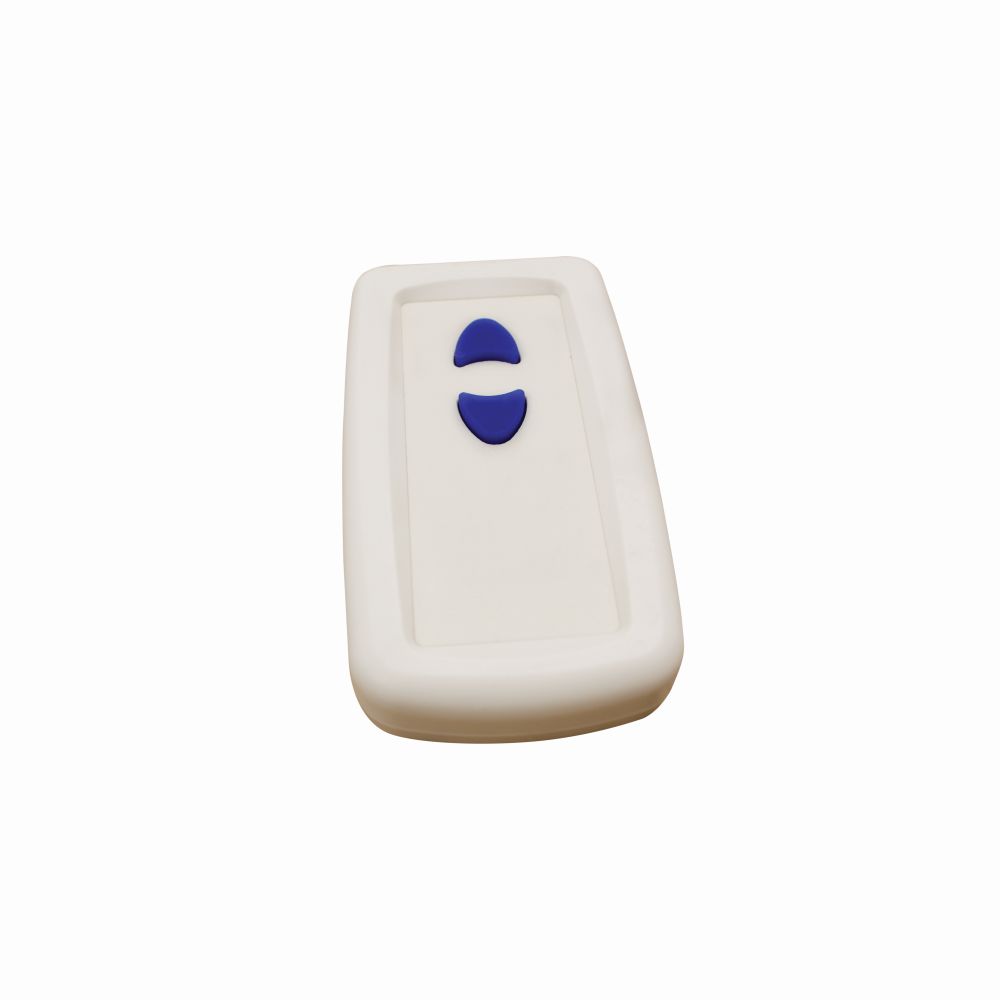

  • Remote
spacer
Stair Lift Repair and Servicing
Call (859) 494-5235 for the absolute lowest price on this product
 or let us send you a coupon
.
Your Price$4,495.00
MSRP$5,375.00
Additional Shipping?Yes
*Non-Contiguous U.S. States & Territories - please call for shipping charges.
Product Review
(0)
(0)
No Sales Tax in most states.
The Pinnacle Premiun has earned its name and reputation for standing above the rest. Design, Form and Function come together to make Pinnacle the most reliable, durable, and sought after stair lift on the market.

What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.

Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.
* CT, MI and WA customers please check your local inspection regulations for stair lifts.
Drive TypePolymer Worm / Worm-Rack
Battery PoweredYes
Self InstallableYes
Basic Installation IncludedNo
Swivel SeatYes
Standard Capacity350 lb
Max Track Length, Standard15.5'
Constant Pressure ControlsYes
Max Track Length, Optional70'
Footrest Safety SensorYes
Rail Angle, Min32°
Rail Angle, Max52°
Track MaterialAliuminum
Seat Width, Min20"
Seat Depth15.5"
Flip-Up SeatYes
Unit Footprint, In Use22.5"
Call Stations IncludedWireless
Flip-Up ArmrestsYes
Unit Footprint, Parked11"
Track Footprint7"
Track Width4.875"
Digital Diagnostics DisplayNo
Power Cord Lengths10' with the charger box in the middle
Key LockYes
Shipping Info
Shipping Weight
Shipping Length
Shipping Width
Shipping Height
  • Track Lengths Selection: 15' (180") is Standard *

    • $0.00
      option_name
      * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
      spacer
    • $0.00
      No Image
      15' (180") of Track
      spacer
    • $0.00
      No Image
      Length in inches if Shorter than 180" (allow +7" for entry/exit)
      spacer
  • Additional Track (Maximum 70' Including the 15' Standard Track)

    • $250.00
      No Image
      Up to 3' of Additional Track
      spacer
    • $393.00
      No Image
      Up to 5' of Additional Track
      spacer
    • $536.00
      No Image
      Up to 7'9" (93") of Additional Track
      spacer
  • Additional Brackets (comes with standard)

    • $29.00
      No Image
      Standard Brackets
      spacer
    • $29.00
      No Image
      Tall Brackets
      spacer
  • Options

    • $143.00
      No Image
      Track Cut to Custom Length (Required for any track cut)
      spacer
    • $143.00
      No Image
      Key Lock on Chasis
      spacer
    • $100.00
      No Image
      Seatbelt Extension
      spacer
    • $50.00
      No Image
      Manual Lowering Tool
      spacer
    • $6,195.00
      No Image
      Folding Rail - Left Hand
      spacer
    • $6,195.00
      No Image
      Folding Rail - Right Hand
      spacer
  • Power Options

    • $0.00
      No Image
      No Power Options
      spacer
    • $860.00
      No Image
      Power Swivel
      spacer
    • $795.00
      No Image
      Power Footrest
      spacer
    • $1,495.00
      No Image
      Power Swivel and Power Footrest
      spacer
  • Call Stations

    • $0.00
      No Image
      Top & Bottom Call-Send Stations
      spacer
  • Orientation (looking UP the staircase)

    • $0.00
      No Image
      The stair lift will be on the left
      spacer
    • $0.00
      No Image
      The stair lift will be on the right
      spacer
  • Installation

    • $0.00
      No Image
      NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
      spacer
    • $0.00
      No Image
      Self Installation
      spacer
    • $599.00
      No Image
      Nationwide Installation
      spacer
    • $749.00
      No Image
      Nationwide Installation and Measurement Service
      spacer
    • $437.50
      No Image
      Double Stair Lift Installation Service - Per Stair Lift
      spacer
    • $499.00
      No Image
      Stair Lift Removal and Disposal
      spacer
  • Installation Special Cases

    • $300.00
      No Image
      Installation On Concrete, Steel, or Tile Stairs
      spacer
    • $345.00
      No Image
      Installation In Remote or Limited Access Location
      Remote and limited access locations include islands that require ferry access.
      spacer
  • Measurements

    • $0.00
      No Image
      Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
      spacer
    • $0.00
      No Image

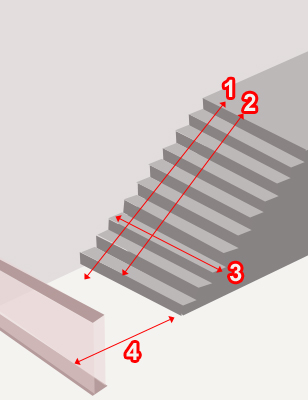

      1. Overall length
      Stand at the top of your stairs, extend your tape measure until it is laying on all the stair treads and the tip of the tape measure is touching the landing at the bottom of the steps.
      stair lift measure 1
      spacer
    • $0.00
      No Image
      2. Top stair to bottom stair
      Measure from the edge of the top step to the edge of the first step (in inches).
      stair lift measure 1
      spacer
    • $0.00
      No Image
      3. Staircase width
      Measure the width of your staircase and enter the measurement (in inches).
      stair lift measure 1
      spacer
    • $0.00
      No Image
      4. Bottom clearance
      If there is a wall or a door at the bottom of the steps, measure from the bottom step to the wall.
      stair lift measure 2
      spacer
    • $0.00
      No Image
      5. Rise of one step
      Measure from the top of a step to the next stop down.
      stair lift measure 2
      spacer
    • $0.00
      No Image
      6. Tread of one step
      Measure the depth of one step.
      stair lift measure 2
      spacer
    • $0.00
      No Image
      7. Diagonal
      Measure from the front of one step to the front of the next step down.
      stair lift measure 2
      spacer
    • $0.00
      No Image
      8. Door at the top
      Measure from the top step to the door, wall, or other obstruction at top of the stairs.
      spacer
    • $0.00
      No Image
      Need help measuring? Please see our "How to Measure" page.
