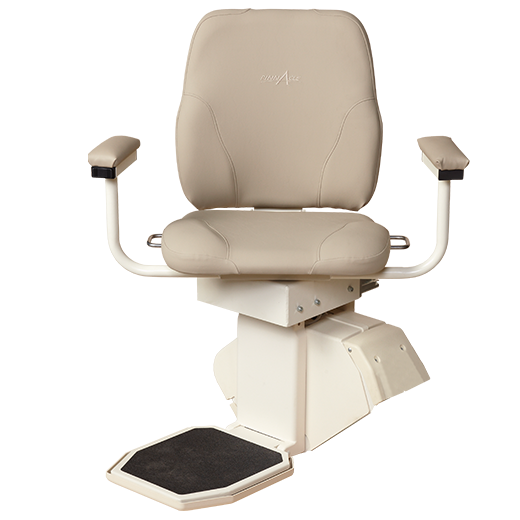

Harmar Pinnacle Stair Lift HD

spacer
Call (859) 494-5235 for the absolute lowest price on this product
 or let us send you a coupon.
Your Price$7,250.00
MSRP$8,995.00
Additional Shipping?Yes
*Non-Contiguous U.S. States & Territories - please call for shipping charges.
Product Review
(0)
(0)
Write a review!
No Sales Tax in most states.
The Pinnacle Heavy Duty Stair Lift offers a high-backed, contoured 24" wide seat which ensures a comfortable and secure ride. The sturdy, stationary armrests and reinforced footrest add stability for safer transfers. It slides out from wall as it pivots at top landing. As with all Pinnacle stair lifts, the HD model is engineered to the highest industry standards and designed for optimal comfort, convenience and aesthetics. Extending the many benefits of the Pinnacle’s patented Worm Drive, this stair lift features a premium ride, little to no maintenance, comfortable seating, and ease of access with a 85 degree swivel - and, with extraordinary lifting capacity.
* CT, MI and WA customers please check your local inspection regulations for stair lifts.
Drive TypeHelical Worm Drive
Battery PoweredYes
Self InstallableYes
Basic Installation IncludedNo
Swivel SeatYes
Standard Capacity600 lb
Max Track Length, Standard15.5'
Constant Pressure ControlsYes
Max Track Length, Optional40'
Footrest Safety SensorYes
Rail Angle, Min32°
Rail Angle, Max52°
Track MaterialClear Anodized Aluminum
Seat Width, Min24"
Seat Depth16"
Warranty3-Year on Components, 10-Year on Rack , 1-Year on Batteries
Flip-Up SeatYes
Call Stations Included2 Wireless
Flip-Up ArmrestsNo
Digital Diagnostics DisplayNo
Key LockYes
Shipping Info
Shipping Weight
Shipping Length
Shipping Width
Shipping Height

  • Track Lengths Selection: 15' (180") is Standard *

    • $0.00
      option_name
      * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
      spacer
    • $0.00
      No Image
      15' (180") of Track
      spacer
    • $0.00
      No Image
      Length in inches if Shorter than 180" (allow +7" for entry/exit)
      spacer

  • Additional Track (Maximum 70' Including the 15' Standard Track)

    • $250.00
      No Image
      Up to 3' of Additional Track
      spacer
    • $393.00
      No Image
      Up to 5' of Additional Track
      spacer
    • $536.00
      No Image
      Up to 7'9" (93") of Additional Track
      spacer

  • Additional Brackets (comes with standard)

    • $29.00
      No Image
      Standard Brackets
      spacer
    • $29.00
      No Image
      Tall Brackets
      spacer

  • Options

    • $143.00
      No Image
      Track Cut to Custom Length (Required for any track cut)
      spacer
    • $143.00
      No Image
      Key Lock on Chasis
      spacer
    • $100.00
      No Image
      Seatbelt Extension
      spacer
    • $50.00
      No Image
      Manual Lowering Tool
      spacer

  • Call Stations

    • $0.00
      No Image
      Top & Bottom Call-Send Stations
      spacer

  • Orientation (looking UP the staircase)

    • $0.00
      No Image
      The stair lift will be on the left
      spacer
    • $0.00
      No Image
      The stair lift will be on the right
      spacer

  • Installation

    • $0.00
      No Image
      NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
      spacer
    • $0.00
      No Image
      Self Installation
      spacer
    • $599.00
      No Image
      Nationwide Installation
      spacer
    • $749.00
      No Image
      Nationwide Installation and Measurement Service
      spacer
    • $437.50
      No Image
      Double Stair Lift Installation Service - Per Stair Lift
      spacer
    • $499.00
      No Image
      Stair Lift Removal and Disposal
      spacer

  • Installation Special Cases

    • $300.00
      No Image
      Installation On Concrete, Steel, or Tile Stairs
      spacer
    • $345.00
      No Image
      Installation In Remote or Limited Access Location
      Remote and limited access locations include islands that require ferry access.
      spacer

  • Measurements

    • $0.00
      No Image
      Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
      spacer
    • $0.00
      No Image
      1. Overall length
      Stand at the top of your stairs, extend your tape measure until it is laying on all the stair treads and the tip of the tape measure is touching the landing at the bottom of the steps.
      stair lift measure 1
      spacer
    • $0.00
      No Image
      2. Top stair to bottom stair
      Measure from the edge of the top step to the edge of the first step (in inches).
      stair lift measure 1
      spacer
    • $0.00
      No Image
      3. Staircase width
      Measure the width of your staircase and enter the measurement (in inches).
      stair lift measure 1
      spacer
    • $0.00
      No Image
      4. Bottom clearance
      If there is a wall or a door at the bottom of the steps, measure from the bottom step to the wall.
      stair lift measure 2
      spacer
    • $0.00
      No Image
      5. Rise of one step
      Measure from the top of a step to the next stop down.
      stair lift measure 2
      spacer
    • $0.00
      No Image
      6. Tread of one step
      Measure the depth of one step.
      stair lift measure 2
      spacer
    • $0.00
      No Image
      7. Diagonal
      Measure from the front of one step to the front of the next step down.
      stair lift measure 2
      spacer
    • $0.00
      No Image
      8. Door at the top
      Measure from the top step to the door, wall, or other obstruction at top of the stairs.
      spacer
    • $0.00
      No Image
      Need help measuring? Please see our "How to Measure" page.
