Pride Jazzy EVO 614

spacer

model: PRDJZEVO614

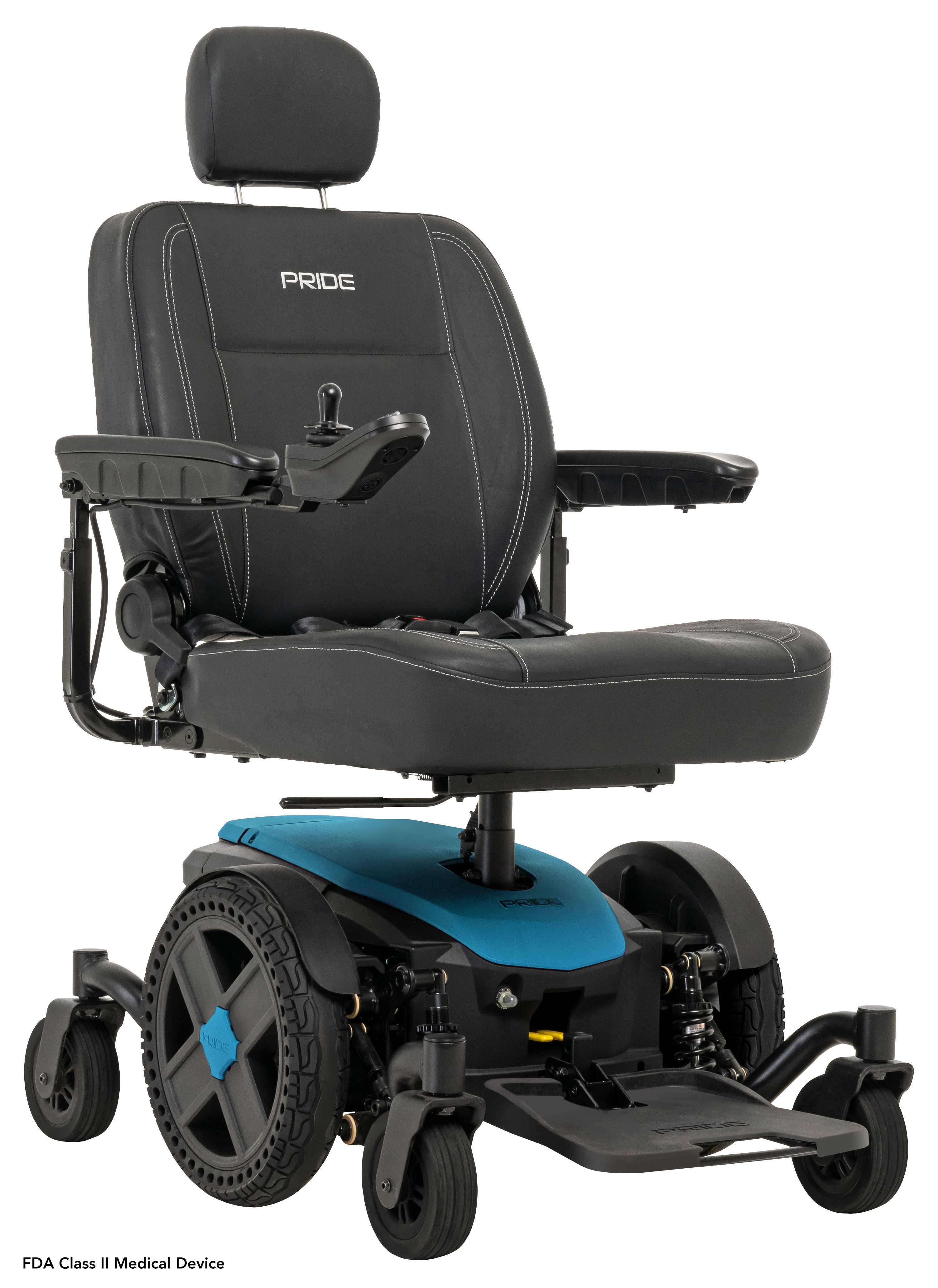

Pride Jazzy EVO 614
Click to enlarge
spacer
Additional Images

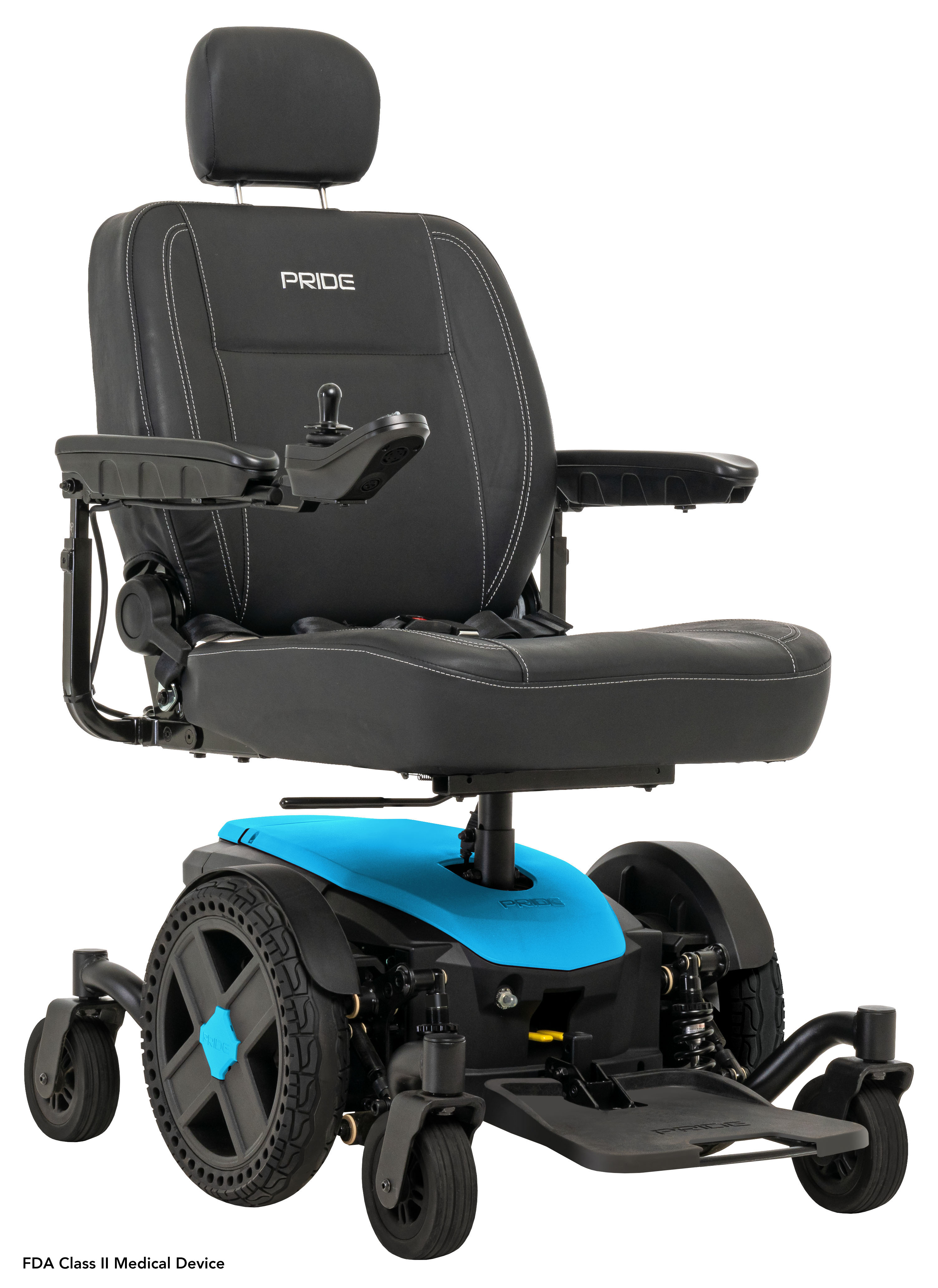

  • Iceberg Blue
  • Red
  • Robins Egg
  • Sugar Plum
  • White

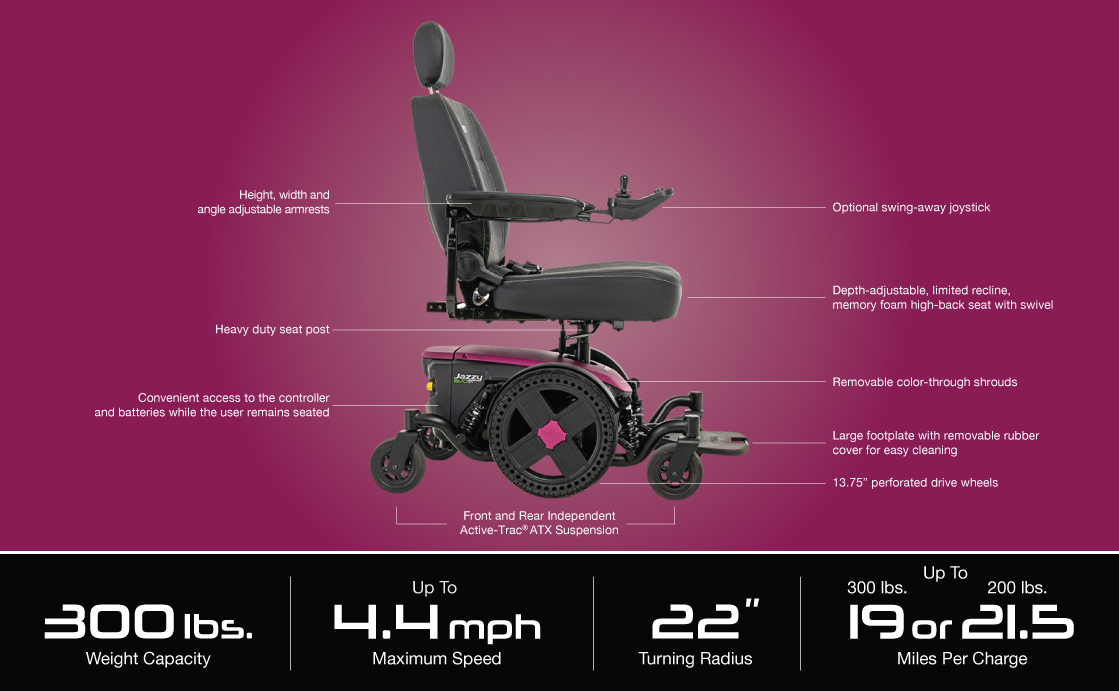

  • Specifications

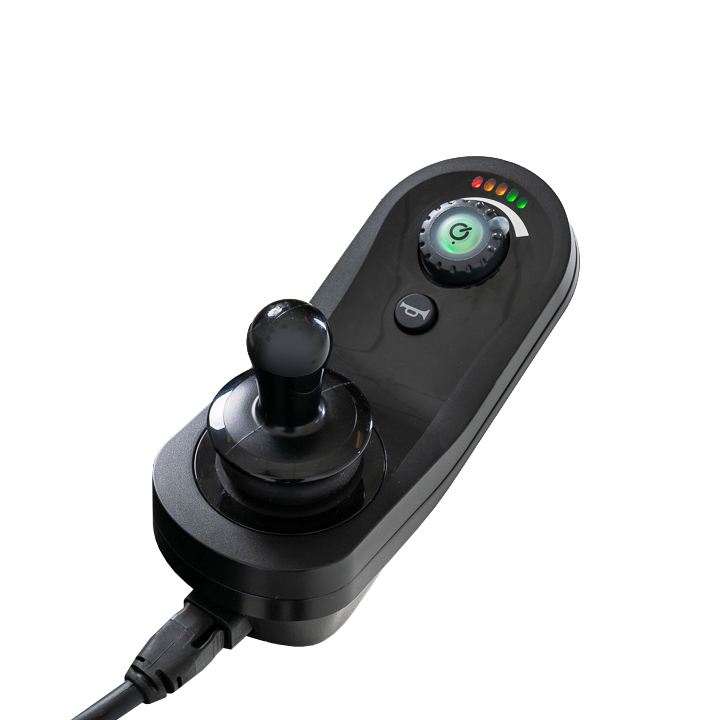

  • Joystick Controller

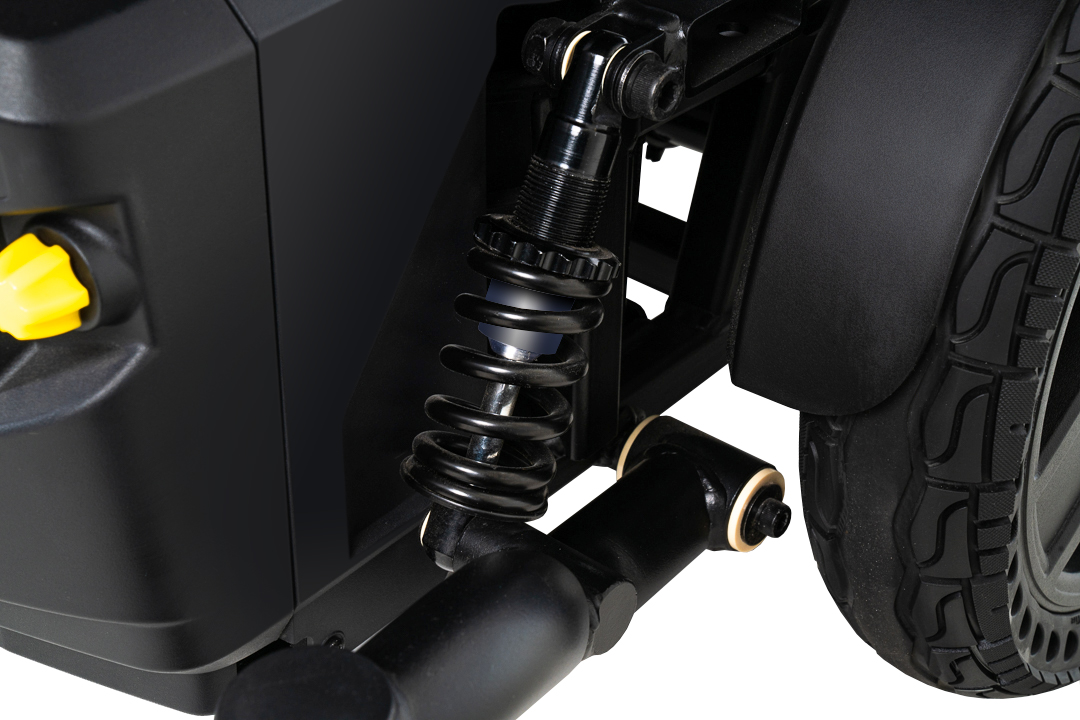

  • Suspension

Additional Resources
Call (859) 494-5235 to learn more about our special offers.
Your Price$3,769.00
Regular Price$6,199.00
*Non-Contiguous U.S. States & Territories - please call for shipping charges.

Warranty Info

Click Here
Product Review
(0)
(0)
No Sales Tax in most states.
The Jazzy EVO 614 is your ultimate mobility alternative. With new 13.75-inch center drive wheels, a 3" ground clearance and new top speed of 4.4 mph, it's built for crossing the threshold for indoor and outdoor use. At just 22" inches, Jazzy EVO 614's turning radius comes in under two feet, which means your power wheelchair more easily navigates tight turns indoors and in your favorite shops and restaurants.
  • 3" ground clearance
  • 13.75" perforated mid-wheel drive tires
  • Front and rear independent Active-Trac® ATX Suspension
  • Removable matte-finish color-through shrouds
  • Depth-adjustable, limited recline, memory foam heavy duty single seat post allows the user to swivel
  • Access to controller and batteries without the user needing to exit the chair
  • 60" lap belt
Weight Capacity300 lb
Overall Length40.5"
Overall Width25.4"
Range19 mi
Weight, Base125.7 lb
Turning Radius22"
Ground Clearance3"
Weight, Total255.5 lb
Top Speed4.4 mph
Weight, Seat57.8 lb
Minimum Seat Height72"
Weight, Batteries73 lb
Drive Wheels13.75" Perforated
Caster Wheels6"
Charger Type5AH Off-board
Battery Type2ea NF22
Shipping Info
Shipping Weight
Shipping Length
Shipping Width
Shipping Height
  • Shroud Color (all are matte)

    • $0.00
      Cardinal Red
      Cardinal Red
      spacer
    • $0.00
      Sugarplum
      Sugarplum
      spacer
    • $0.00
      Iceberg Blue
      Iceberg Blue
      spacer
    • $0.00
      Robin's Egg
      Robin's Egg
      spacer
    • $0.00
      Black
      Black
      spacer
    • $0.00
      White
      White
      spacer
  • Batteries

    • $0.00
      No Image
      22NF Batteries (set of 2)
      spacer
  • Swing-Away Joystick Mounting Bracket

    • $0.00
      No Image
      Standard Mount
      spacer
    • $245.00
      No Image
      Swing-Away Joystick Mounting Bracket - Left
      spacer
    • $245.00
      No Image
      Swing-Away Joystick Mounting Bracket - Right
      spacer
  • Seating (all come with 60" lap belt)

    • $0.00
      No Image
      Captain Seat, Depth-Adjustable, Memory Seat, Limited Recline, High Back
      spacer
    • $0.00
      No Image
      16″W × 16″ – 18″D
      spacer
    • $0.00
      No Image
      18″W × 18″ – 20″D
      spacer
    • $0.00
      No Image
      20″W × 18″ – 20″D
      spacer
    • $0.00
      No Image
      Solid Seat Pan, Depth-Adjustable, Comfort Seat, Limited Recline, High Back
      spacer
    • $0.00
      No Image
      16″W × 16″ – 18″D
      spacer
    • $0.00
      No Image
      18″W × 18″ – 20″D
      spacer
    • $0.00
      No Image
      Solid Seat Pan, Deluxe Contour, Limited Recline, High Back
      spacer
    • $0.00
      No Image
      20″W × 20″D.
      spacer
  • Leg Rests

    • $0.00
      No Image
      Foot Platform
      spacer
    • $0.00
      No Image
      Swing-Away Leg Rests (60-90 degree)
      spacer
    • $172.00
      No Image
      Swing-Away Leg Rests, 7.25" x 6" Footplates
      spacer
    • $172.00
      No Image
      Swing-Away Leg Rests, 8.5" x 6" Footplates
      spacer
    • $0.00
      No Image
      Elevating Leg Rests
      spacer
    • $342.00
      No Image
      Elevating Leg Rests, 8.5" x 6" Footplates
      spacer
  • Leg Rest Accessories

    • $53.00
      No Image
      Heel Loops for Swing-Away Leg Rests (pair)
      spacer
    • $53.00
      No Image
      Heel Loops for Elevating Leg Rests (pair)
      spacer
    • $342.00
      No Image
      Residual Limb Support, Left
      spacer
    • $342.00
      No Image
      Residual Limb Support, Right
      spacer
  • Armrests - Required (Correct Ones for the Seat will be Provided)

    • $90.00
      No Image
      Height Adjustable Flip-Up Armrests - Left
      spacer
    • $90.00
      No Image
      Height Adjustable Flip-Up Armrests - Right
      spacer
  • Rear Accessories (only one at a time)

    • $118.00
      No Image
      Rear Basket for Deluxe Contour Seat
      spacer
    • $118.00
      No Image
      Rear Basket for Comfort/Memory Seat
      spacer
    • $110.00
      No Image
      Cane & Crutch Holder for Deluxe Contour Seat
      spacer
    • $110.00
      No Image
      Cane & Crutch Holder for Comfort/Memory Seat
      spacer
    • $118.00
      No Image
      Walker Holder for Deluxe Contour Seat
      spacer
    • $140.00
      No Image
      Walker Holder for Comfort/MemorySeat
      spacer
    • $125.00
      No Image
      Oxygen Tank Holder for Deluxe Contour Seat
      spacer
    • $103.00
      No Image
      Oxygen Tank Holder for Comfort/Memory Seat
      spacer
  • Other Accessories

    • $168.00
      No Image
      Weather Cover, Large, Black
      spacer
    • $40.00
      No Image
      Saddle Bag - 12.5" x 9.875"
      spacer
    • $40.00
      No Image
      Saddle Bag - 11.75" x 17"
      spacer
    • $32.00
      No Image
      Cup Holder for Deluxe Contour Seat
      spacer
    • $30.00
      Cup Holder Style C Pride Scooters
      Cup Holder for Comfort/Memory Seat
      spacer
    • $74.00
      No Image
      Cell Phone Holder
      spacer
    • $35.00
      No Image
      Flag Holder for Deluxe Contour Seats
      spacer
    • $35.00
      No Image
      Flag Holder for Comfort/Memory Seats
      spacer
  • Lap Belt (additional, a 60" is included)

    • $39.90
      No Image
      50"
      spacer
    • $39.90
      Lap Belt, 60"
      60"
      spacer
    • $39.90
      No Image
      70"
      spacer
    • $39.90
      No Image
      80"
      spacer
    • $39.90
      No Image
      90"
      spacer
  • Military Patches

    • $21.00
      Air Force Patch
      Air Force
      spacer
    • $21.00
      Army Patch
      Army
      spacer
    • $21.00
      Coast Guard Patch
      Coast Guard
      spacer
    • $21.00
      U.S. Marine Corps Patch
      Marine Corps
      spacer
    • $21.00
      Navy Patch
      Navy
      spacer
    • $21.00
      Purple Heart Patch
      Purple Heart
      spacer
  • Extended Warranty

    • $0.00
      No Image
      1 Year In-Home Parts & Labor Warranty
      spacer
    • $269.00
      No Image
      2 Year In-Home Labor Warranty
      spacer
spacer
Wheelchair Measuring Diagram - Front
Wheelchair Measuring Diagram - Side

 Seat Width: Measure the widest point of your body between the knees and hips. Add at least one inch- to this measurement for some extra breathing room. If you typically wear bulky or heavy clothing, such as during outdoor use in winter, you may wish to add two inches to this measurement to give yourself adequate room to move.



Back Height: This measurement will determine the distance from the seat base to the top of the wheelchair's seat back. Typically, you'll want to measure from the most posterior point of your body to the center point between your shoulder blades. Some users may prefer a higher back for added support, but remember that the higher the back of the chair is, the less room you'll have to rotate your upper body while seated.



Front Seat to Floor: Measure your leg from the back of your knee to the sole of your foot. Unless you are choosing a foot-propelled wheelchair, you will want to add two inches to this measurement to give yourself plenty of clearance for a footrest.



Seat Depth: Measure from the most posterior point of your body to the interior of your knee, deducting two inches from the total. You may require a greater amount of leg overhang to lift your legs during use; if so, consult your rehabilitation professional for guidance on adjusting your measurements accordingly, or speak with one of our power wheelchair specialists by dialing 1 (800) 794-9813 to get the right fit.



Hanger Angle: This measurement specifies how far your toes will extend from your body when seated, and is measured horizontally. The tighter your hanger angle, the less space you'll need to turn your wheelchair around. The flexibility of your legs and knees may also impact the hanger angle you will want to choose. Most wheelchairs have a hanger angle of about 70 degrees, and the farthest hanger angle available on any wheelchair is 60 degrees. Pediatric chairs have a hanger angle of 90 degrees to accommodate the shorter leg length of child users. A hanger angle is difficult for a wheelchair user to measure on their own, so we highly recommend calling one of our power wheelchair experts at 1 (800) 794-9813 to help you find a chair with the optimal hanger angle for your needs.
